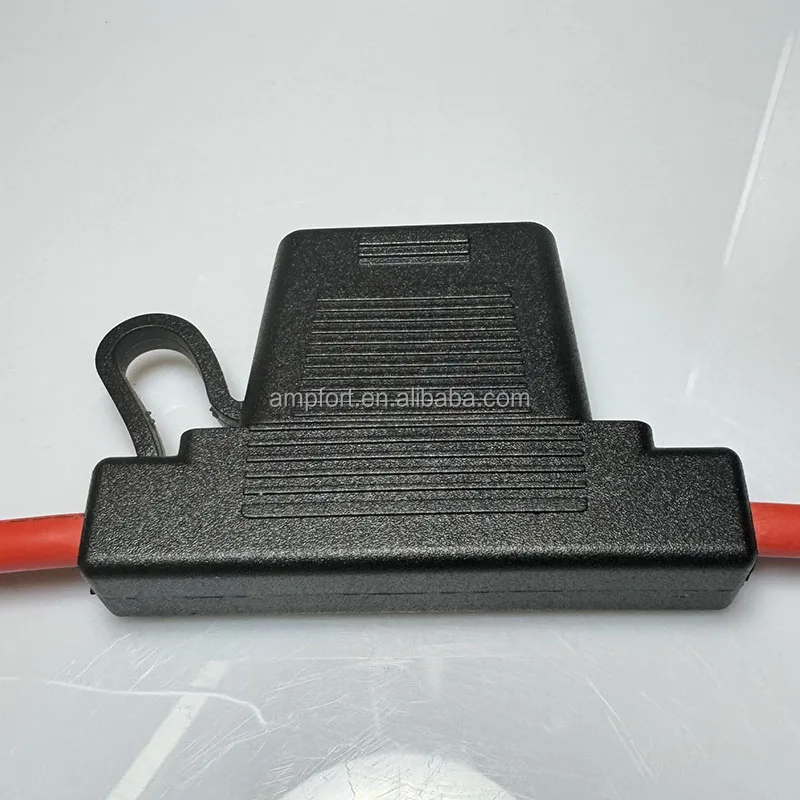

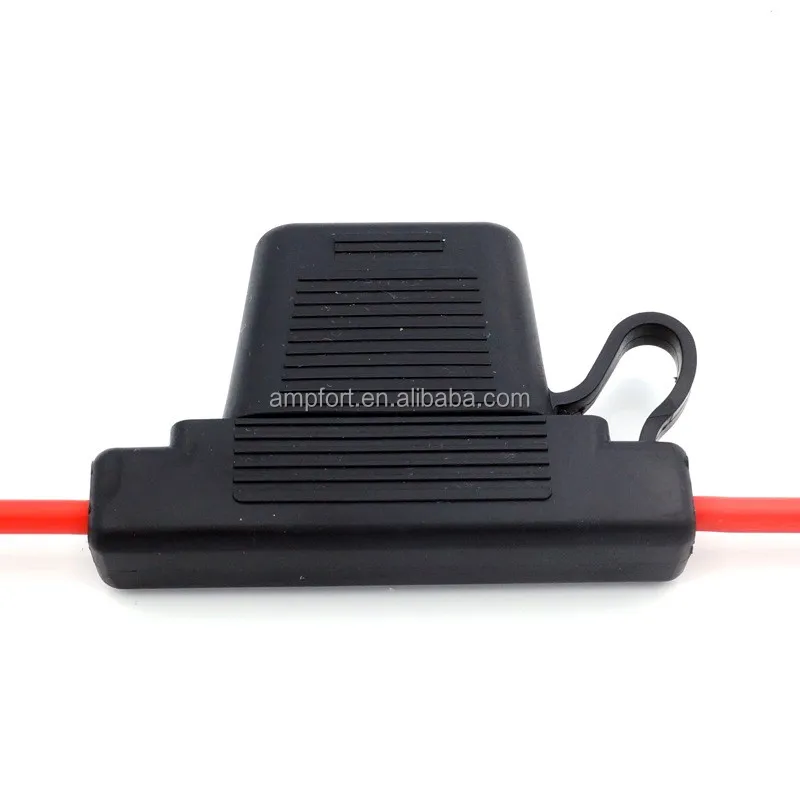

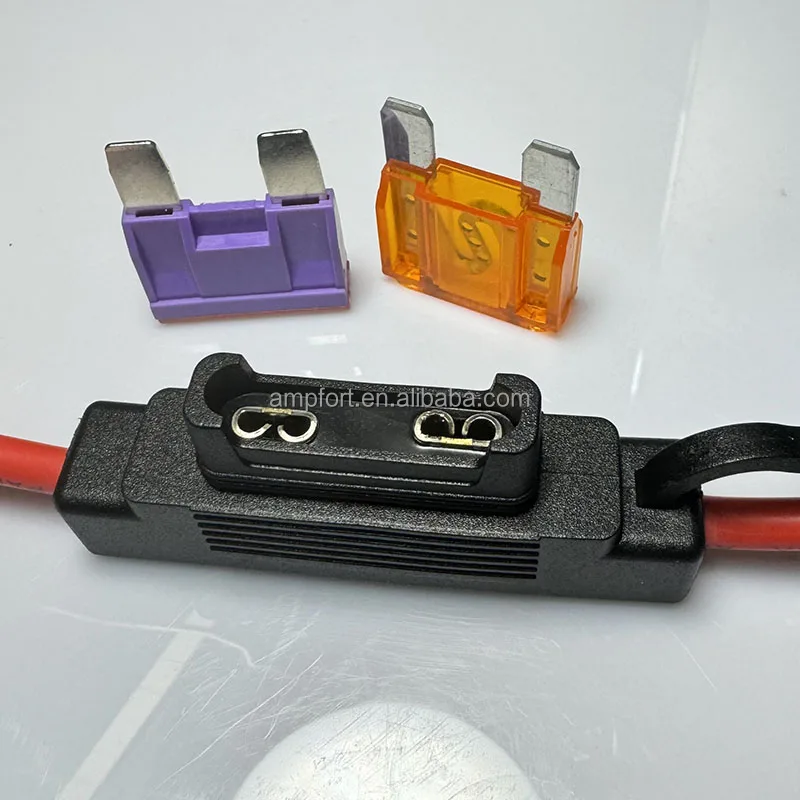

High Current Type Inline Fuse Holder 100A For 299 MAXI 32V Automotive Blade Fuse
Description

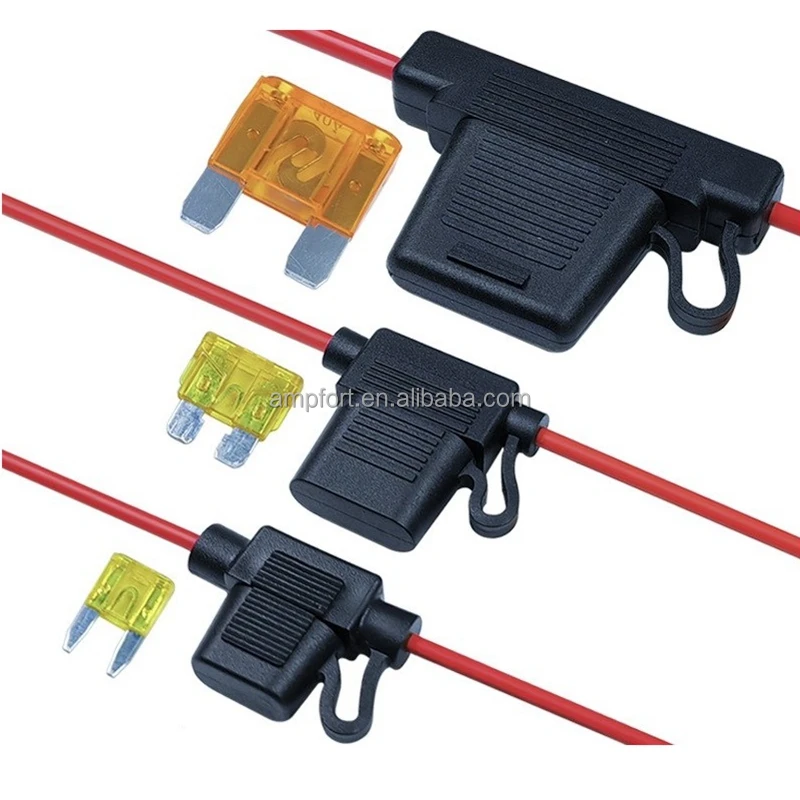

Fuse Block, Fuse Holder and Fuse Accessories Enable easy fuse installation and replacement with our comprehensive line of fuse blocks, fuse holders, and fuse accessories for automotive, electronic, and industrial applications.Automotive and Commercial Vehicle Fuse Holders Fuseholders for automotive style fuses including MINI, ATO, MAXI, MIDI, MEGA, JCASE and Universal Glass Fuses. Fuseholders are available for In-Line, Bolt-Down, Panel Mount and PCB applications.
Features

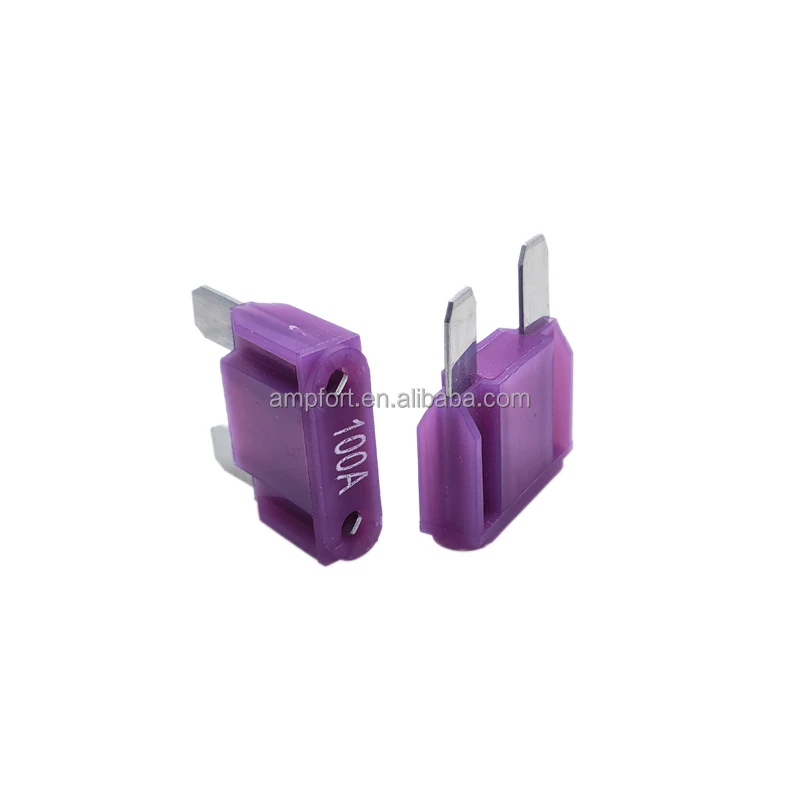

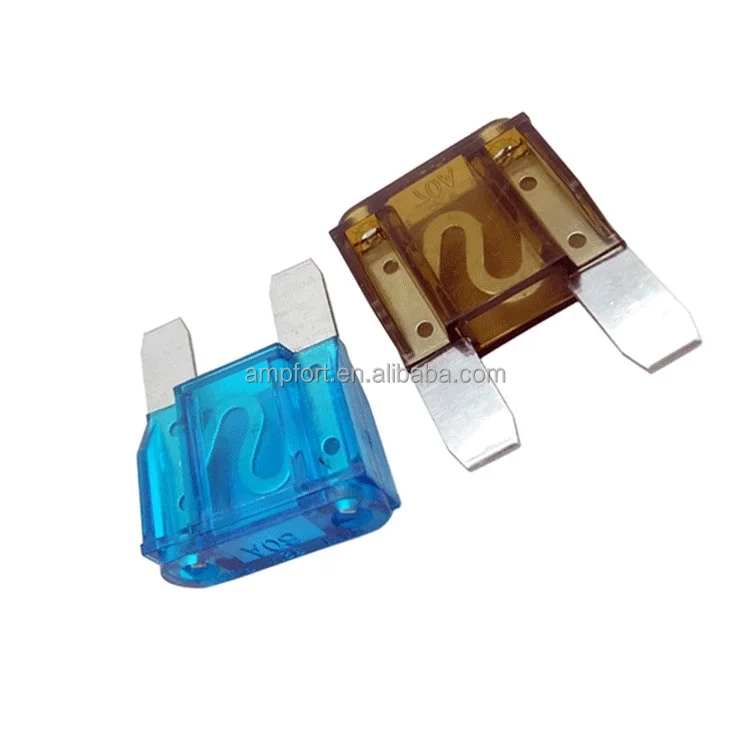

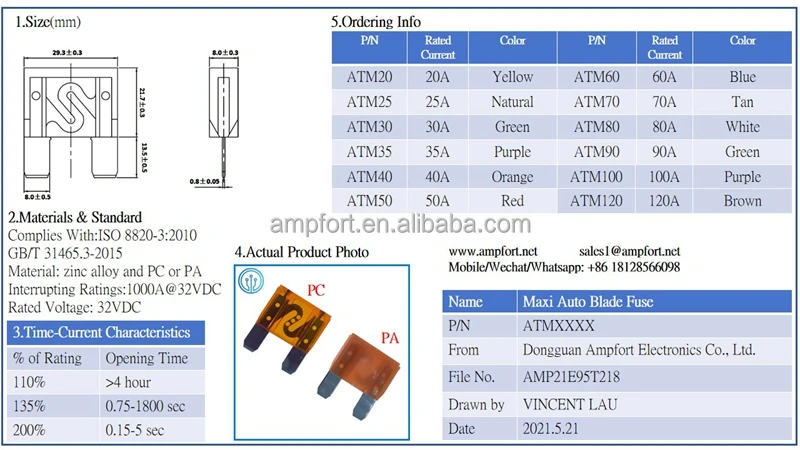

Compatible with MAXI blade-style fuses up to 120 amps (sold separately)
max 6 gauge UL31015-rated wire leads for an easy-to-install in-line fuse holder design
Heat-resistant thermoplastic housing is ideal for automotive applications
Center body hole enables easy mounting to a bulkhead

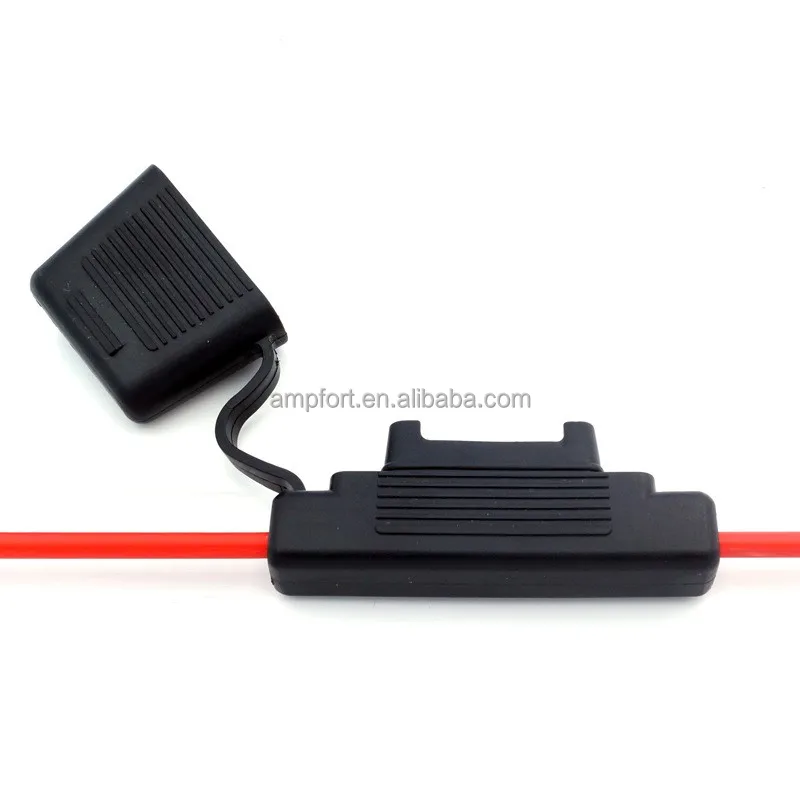

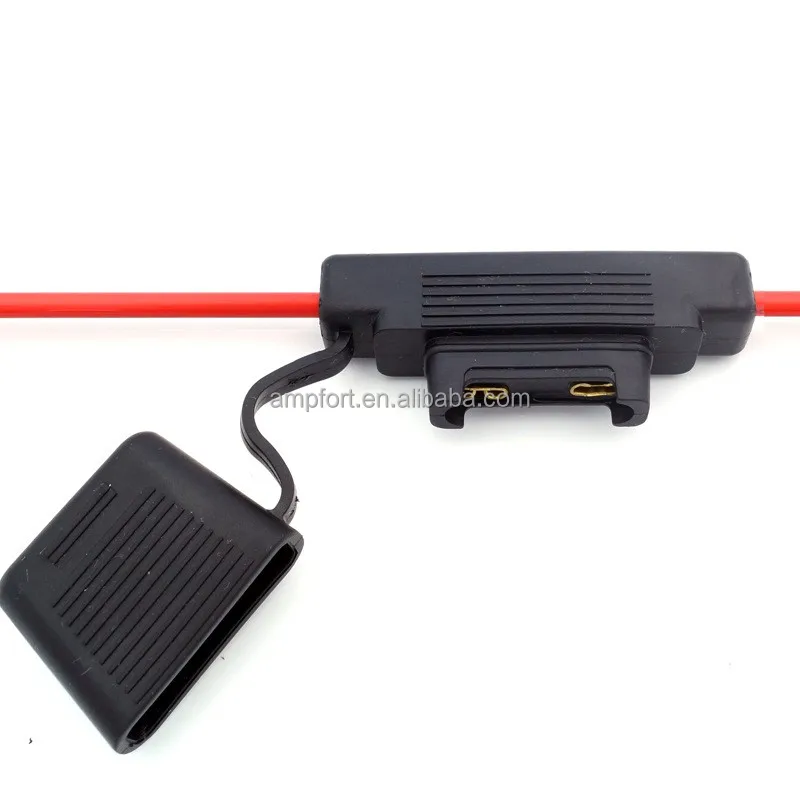

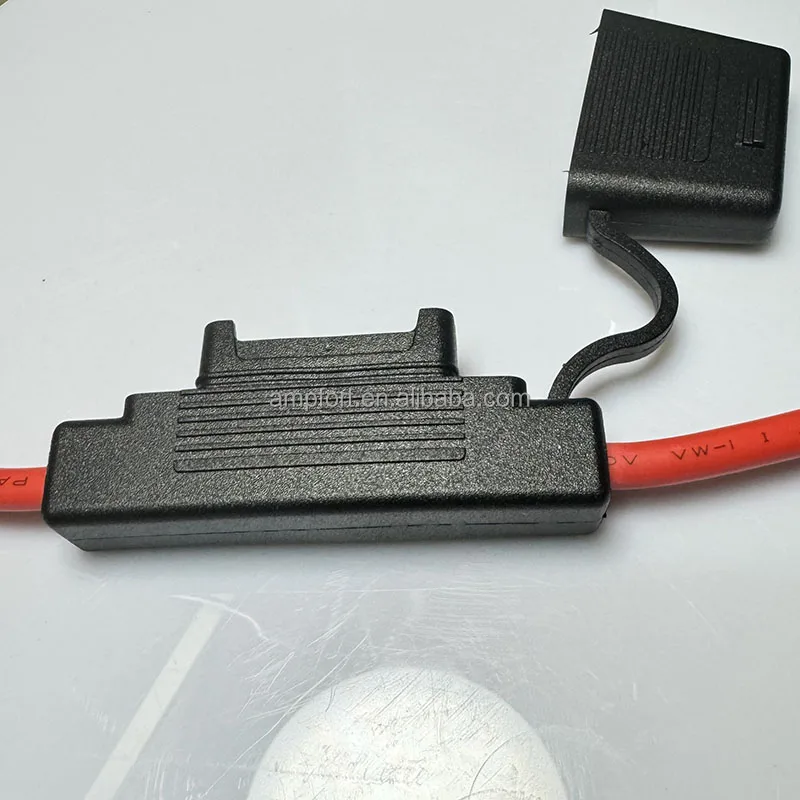

Tethered cover protects against splashes and debris
UL 94 V-0 flammability rating
The cap plays a protective role to prevent the entry of water droplets and fine particles
The main plastic is PVC with high chemical stability, good mechanical properties.

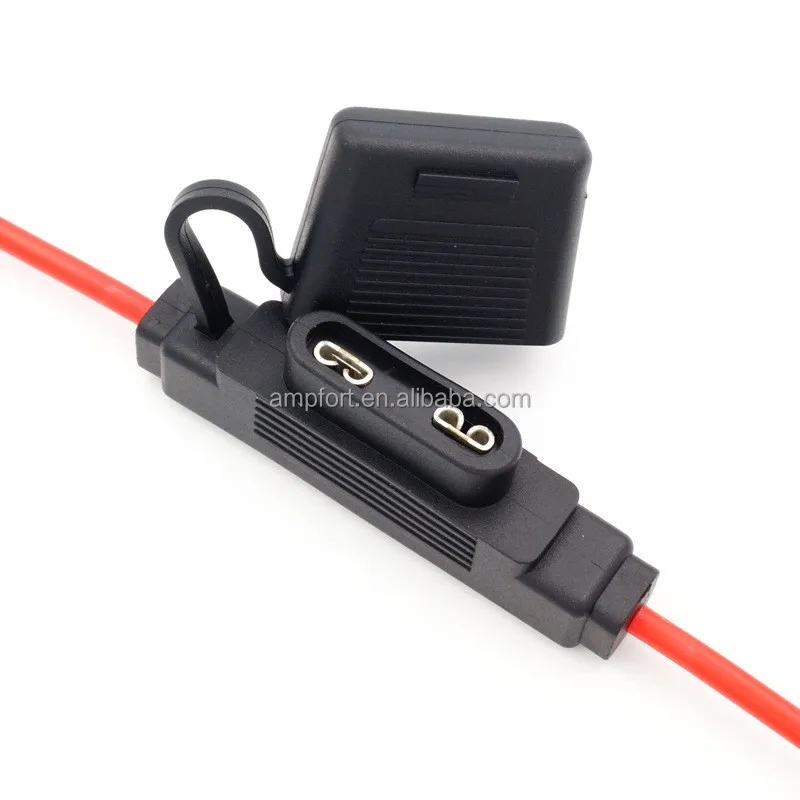

Brass terminal, conductive and fastening insert fuse, strong conductivity, prevent long-term moisture.
Wire material: High quality copper wire. Sheath material: PVC
Typical Application
Air Conditioners
High-Amp Audio Equipment
Heater Blower Motor
Air Compressors
Automotive and industrial machinery harnesses etc.
Specification
Product name: Maxi Car Inline Fuse Holder
Brand: Tianrui
Current: 20A 30A 40A 50A 60A 70A 80A
Voltage: 32V
Size: Maxi
Type: Auto fuse holder
Body:PVC material. Black for housing color
Terminal: Nickel-plated Brass.
Wire gauge: 8AWG, 10AWG etc.
Wire length and insulation color can be customized upon request.
| Item | Specification |
| body Material | PA. PVC&TPE |
| Lengthl | LI=145M L2=145Mm |
| Wires | 10ANG |
| Applicable Fuse | AB29 |
| rated Current | 50amp max |
| Model No. | Specification |
| WG3101 | 10 AWG RATED To 60AMP |
| WG3100 | 8 AWG RATED To 80AMP |
| WG31000 | 6 AWG RATED To 80AMP |
Product Display
